Description
Come fully flightcased
Nexo LS18 18-Inch Sub Bass Speaker Features
– High power system (137-140dB peak SPL @ 1m)
– Frequency response 30Hz-130Hz
– 1x 18-inch with 4-inch voice coil long excursion 8Ω driver
– Light and easy to handle
– Integrates with GEO S12 and PS Systems
– Frequency Response [a]: 35 Hz – 120 Hz ±3dB
– Usable Range @-6dB [a]: 32Hz – 130 Hz
– Sensitivity 1W @ 1m [b]: 107 dB SPL Nominal
– Nominal Peak SPL @ 1m [b]: 137 to 140 dB Peak
– Nominal Impedance: 8 Ω
– Crossover Frequencies: 60 Hz – 85 Hz – 120 Hz Active
– Amplified Controller:
– NXAMP4x1: 2 x LS18 in parallel on 2 bridged channels
– NXAMP4x4: 2 x LS18 on 1 channel
– Components: 1x 18-inch (46cm) with 4-inch voice coil long excursion 8 Ω driver
– Connectors: 2x NL4MP Speakon 4 pole
– Construction: Baltic Birch Ply & structured black coating
– Handles: 4 metal recessed pockets (2 per side)
– Front finish: Molded Dark Grey Metal Grill
– Flying Points: Two side plates connecting with external accessories
– Stand fittings: Internal Steel Stand Fitting on Top (35mm, 1?-inch) allows pole mounting for PS15 or Geo S12
Physical:
– Dimensions (W x H x D): 675 x 510 x 775 mm
– Weight: 55.5 kg

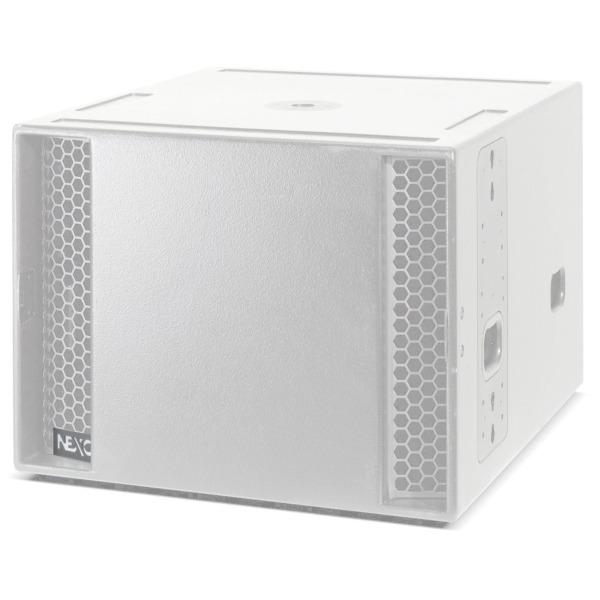

The Nexo LS18 18-Inch Sub Bass Speaker brings new versatility to NEXO GEO S12 line array systems and PS Series cabinets, delivering high SPL at a relatively low cost. Light and easy-to-handle, the LS18 uses a single 18-inch long excursion driver and is compatible with all GEO S12 accessories, so it can fly with the S1230 and S1210 line array modules, or anchor a ground stack of S12 cabinets. With a steel stand fitting on top of the cabinet, the LS18 also allows for pole mounting of GEO S12 cabinets or NEXO PS15-R2 full-range speakers. LS18 can be flown in tandem with PS15s, which will be of particular interest to the installation sector.
